GLL 3-80 CG Professional

GLL 3-80 CG Professional
GLL 3-80 CG Professional
Code: 0 601 063 T00

Technical data

The most important data
Laser diode 500 – 540 nm, < 10 mW
Operating temperature -10 – 40°C
Storage temperature -20 – 70°C
Laser class 2
Working range up to 30 m
Working range with receiver up to 120 m
Accuracy +/- 0.2 mm/m*/** (*for the four horizontal intersection points ; **plus use-dependent deviation)
Self-levelling range ± 4°
Levelling time 4 s
Dust and splash protection IP 54 *** (***except for the lithium-ion battery and AA1 battery adapter)
Power supply 12 V Li-Ion battery, 4 x 1.5 V LR6 (AA)
Operating time (max.) 6 h (Li-Ion) and 4 h (4 x AA) in 3-line mode
Tripod thread 1/4", 5/8"
Weight, approx. 0.9 kg
Colour of laser line green
Projection 3 x 360° line
Compatible laser receivers LR 7

Advantages

3 x 360° bold green lines for optimal visibility. Simply connected.



  • Bright green laser lines offer up to four times better visibility than red lines
  • Very precise CAL Guard monitoring and remote-control use with Bluetooth®-connected smartphone app
  • 3 x 360° lines allow simultaneous horizontal and vertical levelling applications for highly efficient work

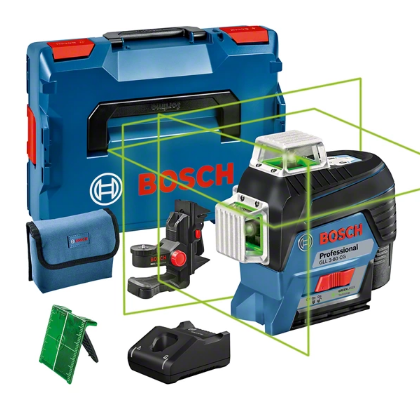

The line laser GLL 3-80 CG Professional is simply connected and projects bold 3 x 360° lines for maximum visibility. Bright green laser lines offer up to four times better visibility than red lines. Innovative CAL Guard monitoring and a Bluetooth®-connected smartphone app allow for remote-control use as well as contactless adjustments and high precision. This tool's 3 x 360° lines allow simultaneous horizontal and vertical levelling for highly efficient work.

This line laser was developed for building floors, installing windows, mounting shelves, building framework for drywall, and laying tiles.

Due to the GLL 3-80 CG Professional's Dual Power Source, it can be operated both with 12 V Li-ion battery and with standard alkaline batteries for added flexibility. It is capable of levelling itself on non-level surfaces up to +/- 4° in less than 4 seconds with excellent precision of ± 0.2 mm/m*/** and has a working range of up to 120 m when using the optional LR 7 Professional receiver. This line laser is compact, easy to handle, and extremely robust (IP54***).
