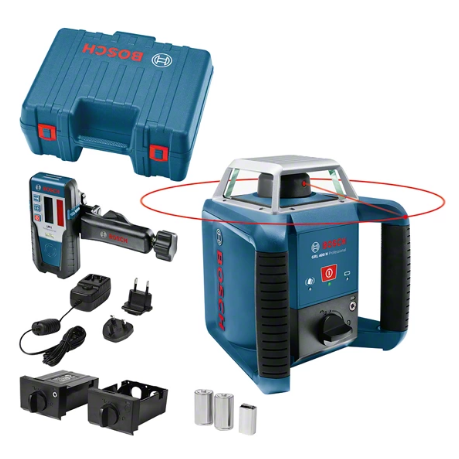

GRL 400 H SET Professional

GRL 400 H SET Professional
GRL 400 H SET ProfessionalGRL 400 H SET Professional
Code: 0 601 061 800

Technical data

The most important data
Laser diode 635 nm, < 1 mW
Operating temperature -10 – 50°C
Storage temperature -20 – 70°C
Laser class 2
Working range 20 m
Working range with receiver 400 m (Diameter)
Working range without receiver 20 m (Diameter)
Accuracy ± 2.4 mm at 30m
Self-levelling range ± 8% (± 5°)
Levelling time 15 s
Dust and splash protection IP 56
Rotation speed 600 rpm
Power supply 2 x 1.2 V HR20 (D) (9 Ah), 2 x 1.5 V LR20 (D)
Operating time (max.) Rechargeable batteries (NiMH) 30 h
Tripod thread 5/8"-11
Weight, approx. 2 kg
Colour of laser line red
Compatible laser receivers LR 1

Advantages

Jobsite-ready – the intuitive, single-button tool for outdoor levelling applications



  • One-button keypad, Electronic Self Levelling functionality, and convenient battery tray
  • Consistently accurate results with 0.08 mm/m levelling accuracy and an ADS shock warning system
  • Withstands harsh conditions of any outdoor jobsite thanks to water and dust protection IP56

Easy to use and ready to go – the intuitive, single-button GRL 400 H rotary laser is always prepared for use at a moment´s notice when performing outdoor-levelling applications. Its one-button keypad, Electronic Self Levelling functionality, and convenient battery tray enable straightforward work with an easy setup and simple battery replacement – without even moving the tool. With a 0.08 mm/m levelling accuracy and an ADS shock warning system that indicates if the tool's position has changed, the GRL 400 H prevents levelling errors and delivers consistently accurate results.

From determining cut and fill values for excavation and footings, to levelling concrete forms and landscaping, this tool does an excellent job. This rotary laser is prepared to withstand the harsh conditions of any outdoor jobsite thanks to its water and dust protection IP56.

The GRL 400 H can be used with rechargeable or alkaline batteries.
