Zorn Lightweight Deflectometer

ZFG 3.1
Light Weight Deflectometer (LWD) according to ASTM E2835-11 and TP BF-StB Part B 8.3 calibrated according to TP BF-StB Part B 8.4

Light Weight Deflectometer ZFG 3.1 is used to determine the dynamic deformation modulus Evd in MPa [MN/m²] by means of the dynamic plate load test. Test results provide conclusions on the bearing capacity and compaction quality of soils. The main field of application for LWDs is earthworks in transport infrastructure construction. Further applications are soil investigation and landscaping.

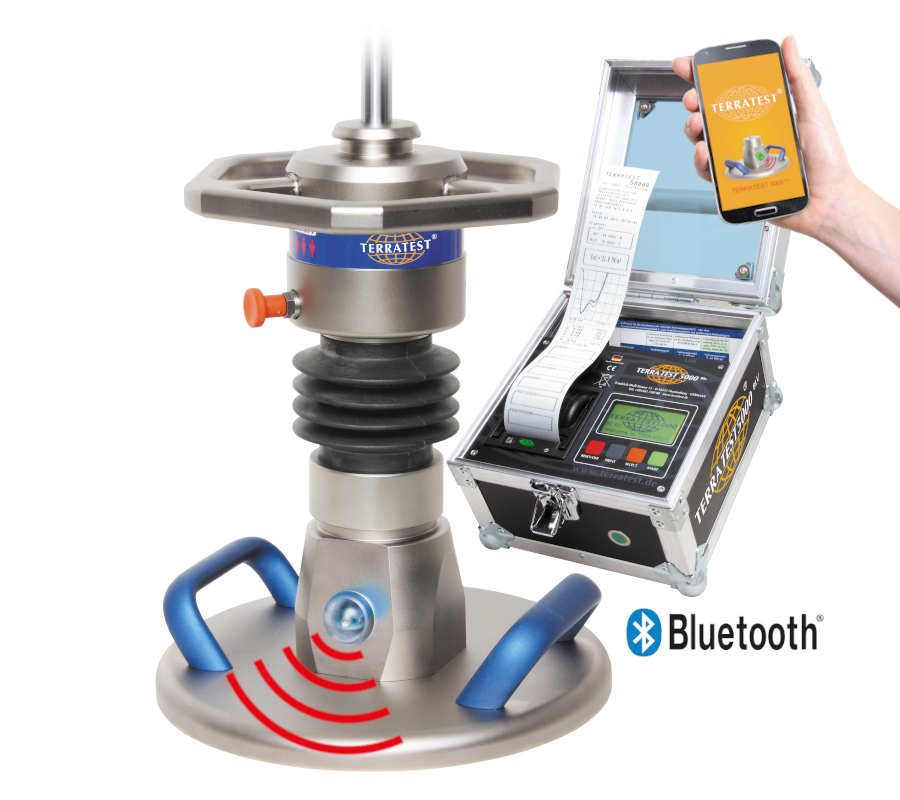

Integrated WIFI transmitter for wireless, fast and secure transmission of measurement data from ZFG to Smartphone, Tablet or PC
Optional high-precision GPS/GNSS receiver
Automatic calculation of deflection, s/v value and deformation modulus Evd

Load device with 10 kg drop weight, impact load 7.07 kN, measuring range Evd 15-70 MPa (MN/m²)
Ready for optional load device with 15 kg drop weight and 1.5 times impact load (10.605 kN); measuring range Evd 70-105 MPa (MN/m²)

300 mm base plate with acceleration sensor (MEMS), max. ground pressure 0.1 MPa (MN/m²)
7Measuring depth/depth of influence: ca. 600 mm
Sensor housing ready for dynamic CBR and 150 mm base plate accessory
Ergonomic, triangular catch handle with anti-slip powder coating
All metal parts with corrosion protection and suitable for use at construction sites
Handheld electronics box (data logger) in robust, weatherproof full leather case
Automatic calculation of deflection mean, s/v value and modulus (Evd)
Multilingual, backlit and graphics-capable display, display of deflection graphs
Internal memory and SD-card for up to 10.000 measurements, automatic storage
SD card USB adapter
Sensor self-test (2G) and integrated calibration memory
Preloading impacts can be switched off
Power supply: four standard R6 batteries (Mignon type / AA) for ca. 1.500 tests (included)
Thermo printer interface
Quick starter manual und calibration protocol
